Movable crushing classifying and screening in 3size station
Introduction

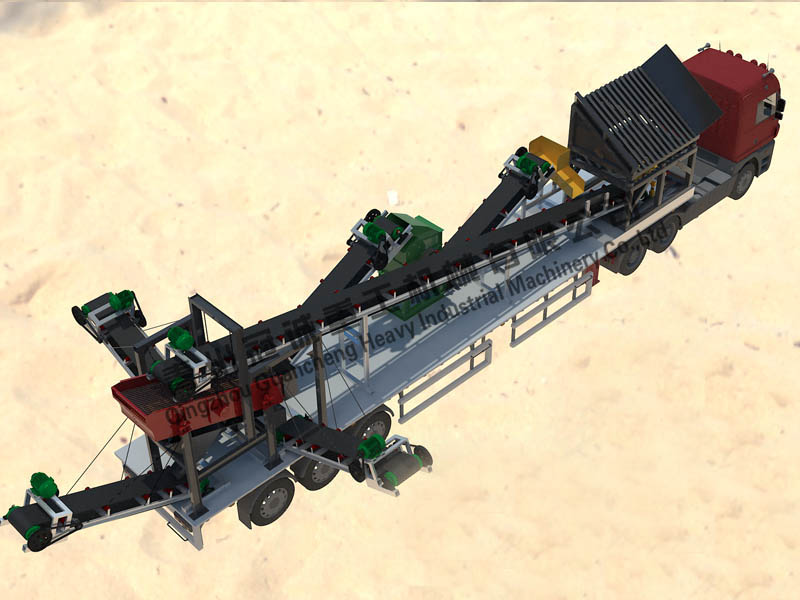

This movable crushing and screening station is to classify the material into 2sizes and capacity is 60-100m3/h,it’s designed by Qingzhou Guancheng heavy industrial machinery co.,ltd,base plate made from 17.5m semi-trailer base plate,the advantage:
1.it can be moved or drove by trailer engine easily,and another set of driving and directions system to be additional,it can be driven by another car or trailer.
2. The vibrating feed hopper and shaking feeder ,the screen of vibrating feed hopper can prevent the big stone from getting into the machine,it can reduce the abrasion,make it work more efficiently,the shaking feeder keep it off clogging of material and well distributed to be transported.
3.Vibrating screen using 2layer mesh,the first layer is using 25# round steel,the 2nd layer with polyurethane screen mesh.
Detail parameter
|
Production Name |
Specification |
Quantity |
Power |
Unit price |
Total price |
Remarks |
|
Driving system |
Trailer engine |
|
|
|
|
|
|
Base plate |
Made from 17.5m semi trailer
|
1pcs |
- |
|
|
|
|
Vibrating feed hopper
|
3000*2000mm |
1set |
7.5 |
|
|
Including the shaking feeder |
|
Vibrating screen |
1200*3600mm |
1set |
7.5 |
|
|
|
|
Feeding conveyor |
Belt width600m,length of pole 16m |
1pcs |
11 |
|
|
Transporting materials to vibrating screen |
|
The recover conveyor |
Belt width600m,length of pole 6m |
1pcs |
5.5 |
|
|
Transporting materials to sandmaking machine |
|
The recover conveyor2 |
Belt width600m,length of pole 4.5m |
1pcs |
5.5 |
|
|
Transporting material s to recover |
|
Gravel transport
conveyor
|
Belt width600m,length of pole 4m |
1pcs |
3 |
|
|
|
|
Sand transport conveyor |
Belt width600m,length of pole 4m |
1pcs |
3 |
|
|
|
|
Sandmaking machine |
800*800mm |
1set |
55 |
|
|
|
|
Electric cabinet
|
Switch Brand:Delixi |
1set |
|
|
|
Including the wire to machine excluding the cable |
|
Total power |
98KW
|
|||||
