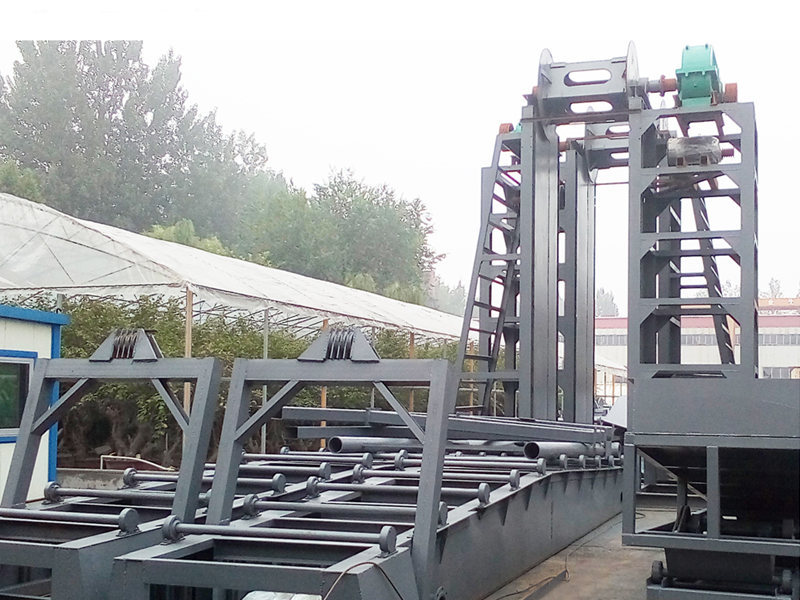

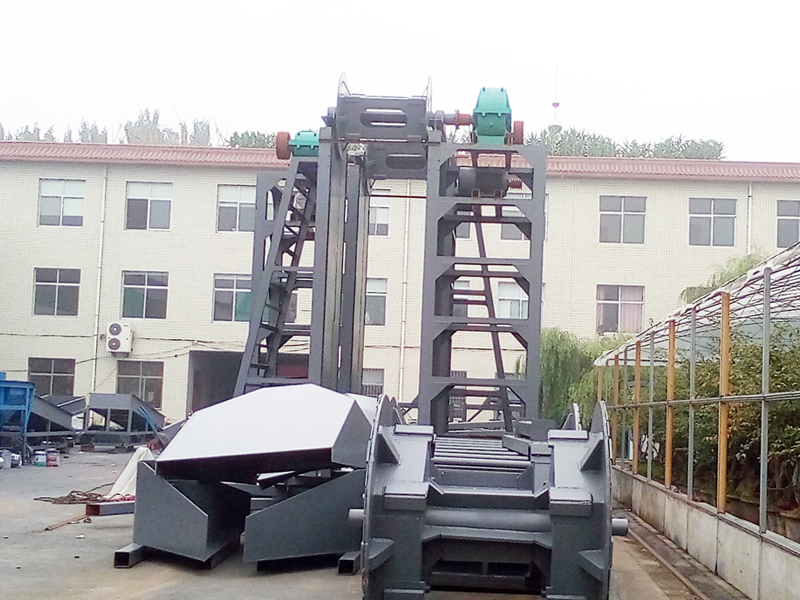

Bucket chain jet suction gold dredger

Product introduction

This bucket chain jet suction gold dredger,working capacity 150m3/hour,the recovery rate can be 80-90%,the set of machine is according to customer’s inquiry and our engineer’s experience,design and manufactured by our company,now it’s the well-rounded production and popular abroad and domestic and overseas,the advantage:

1.The side pontoon of dredger and bottom of pontoon using CCSB steel, the shipping board using flower-typed anti slipper steel, with safe guard bar to protect increased the working safety on the pontoon.

2.The square and pentagon wheels: spindle with external sleeve, the spindle locking principle and natural thermal expansion and contraction, and then set side plate welding, the welding process is avoided because the high temperature impact on the main material; left side plate and the connecting plate is inserted into the slot, in order to ensure the structural strength of welding, welding to the five; angle of wheel plate stick oil automobile spring bow plate wear protection.

3.The clamping plate on both sides of the bucket is connected with the two sides of the bucket by numerical control cutting once forming, non welding products. It has the characteristics of tensile resistance, high strength, no deformation and so on

4.The chain is formed by one-time casting, and it does not produce excessive errors such as welding and forging. It has the characteristics of high density molding standard, tensile resistance, strength resistance and low wear rate

5.Gold recovery using vibrating screen, prevent the material from hardening, with high recovery rate, large capacity, low maintenance rate.

6.Generate set Yuchai power brand isrecommended , with the maintenance all over the world

Technical progress

The material of ore digging by bucket of gold dredger then be transported into vibrating screen to be separated into 2sizes,the big one(scrap material)getting rid to scrap area by scrap sluice,the small one getting through the mineral separating machine into 3 set shaking sluice to get gold concentrate then gold are kept in the carpet of sluice,the scrap are getting rid into scrap area.

Detail parameter
