Cutter suction sand and mud dredger for sale
8 inch cutter suction sand and mud dredger for sale
1. Cutter Suction Dredger is flexible to most kinds of terrains and can be widely used in river sand dredging, channel desilting, reclamation project and mine exploration.
2.By absorbing advanced technology of Dutch and American related products, this series of dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power.
3. The floaters and flexible HDPE pipes guaranteed the long discharge distance of sand and gravel slurry.
4. Cutter Suction Dredger has the characteristics of advanced performance, reasonable structure, easy to maintain, and high input-output cost performance.
5.The capacity of cutter suction dredger range from 100cbm/h to 1000cbm/h, the dredging depth from 1m to 25m and discharging distance from 500m to 3000m which can satisfy different work demands.
2.Working Principle

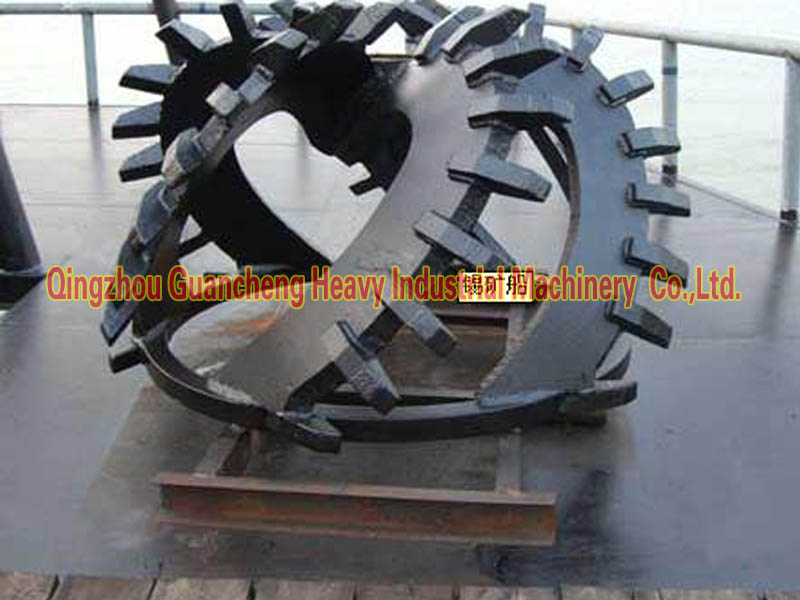

1. The cutter head afront with changable cutter teeth is driven hydraulically and stir the river/lake/channel/sea bottom up.
2. Instigated mixture of sand and gravels(also called slurry) will be sucked up by the suction pipe.
3. The powerful slurry pump, which is connected with the main diesel engine via gearbox will then discharge the slurry to designated place.
