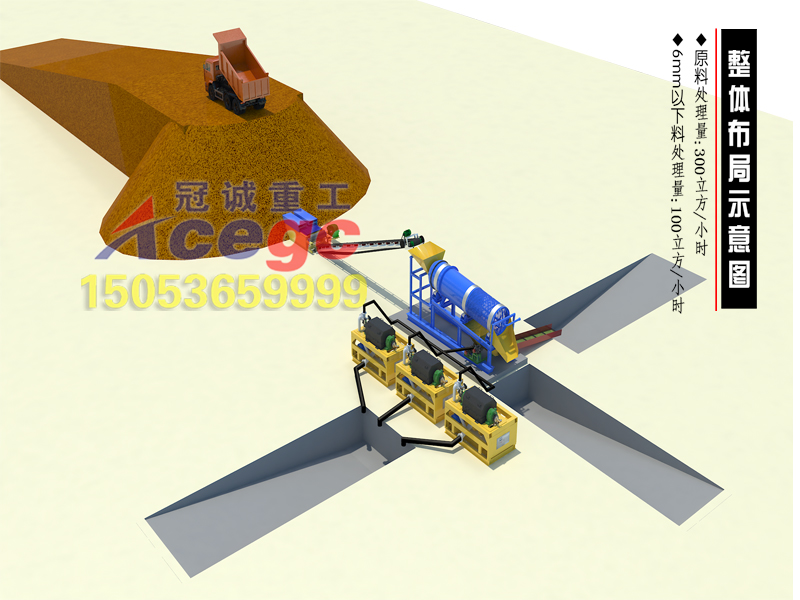

Fixed gold mining machine 300 m3/hour alluvial gold mining

Production

Specification

Qty

Power

Unit price

total price

Reamers trommel screen

Reamer scrubber

Diameter 1.6m,total length 9m,screen mesh 3m;
Including reamers all over the trommel and framework;
Central+2 sides water swilling system;
Driven type:Chain driving
Main holding frame:20#double T steel
Trommel screen:14mm steel board

1set

30KW

-

Feed hopper

Dimension：2000*1600*1200
Material:8mm steel board
Holding frame:12#/10# square pipe

1set

-

Outlet hopper

Material:5.75mm board

1set

-

Base plate

Material:20# U steel 5.75 board

1set

-

Material Feeding device

Material Feeding device

9600*1800
Roller
Center to center spacing 185mm,quantity in 45 pcs
Roller in diameter of 108mm,bearing model6309
Roller in big size
Diameter 460mm,length 1350mm
Bearing model 6314#,single side with 2 bearings
Main holding frame with 18# U steel
Steel board in 2 sides with 5mm thickness steel
The ceiling board thickness 8mm
Belt of transport conveyor width 1200mm,5 layer nylon
Reducer:500#,ratio:23.34

1set

15KW

-

Centrifugal concentrator

Horizontal type model 1200#

PLC automatic control
电机Motor：18.5 KW
空压机Air Compressor：3 KW

3set

64.5KW

-

Fixed gold sluice

1000*6000mm
Gold sluice brand:Mitsubishi,Japan

1pcs

-

-

Transport conveyor

Belt width 1200mm,pole length about 13m
Structure:2 layer
Material:12# 10# U steel,5# angle steel

1pcs

15KW

-

Sand pump

8inch sand pump

Sand pump+cable

1pcs

75KW

-

Centrifugal pump

1pcs

22KW

-

Electric box

Excluding cable

1pcs

-

-

Generate set

Advice to use Commins

300KW

1set

-

-

Total power

221.5 KW（excluding water pump and other equipment)
