50tph Mobile crusher equipment,sand processing machinery

Mobile crusher equipment,sandprocessing machinery introduction

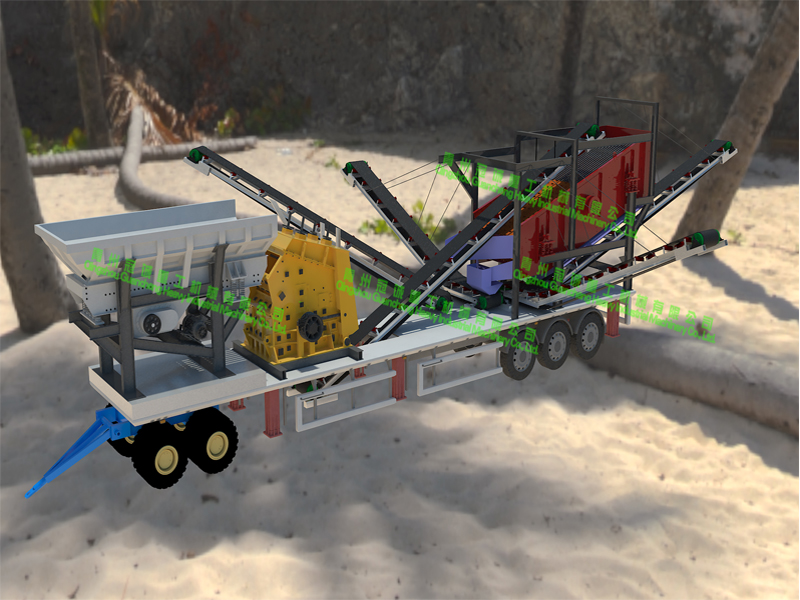

This movable crushing and screening station is to classify the material into 4sizes as stone＞20mm,gravel 10-20mm,5-10mm,,sand 0-5mm,it's also one kind of fine gravel sand making machine for construction use,the capacity is 50ton/h,it’s designed by Qingzhou Guancheng heavy industrial machinery co.,ltd,base plate made from 17.5m semi-trailer base plate,the advantage:

1.it can be moved or driven by trailer engine easily,and another set of driving and directions system to be additional,it can be driven by another car or trailer.

2. The feeding with vibrating feeder,which feeds well distributed and high efficiently.

3.Vibrating screen with 3layer type,the first layer is using 25# round steel,2ndand 3rd layer with polyurethane screen mesh.

Mobile crusher equipment,sandprocessing machinery technical process

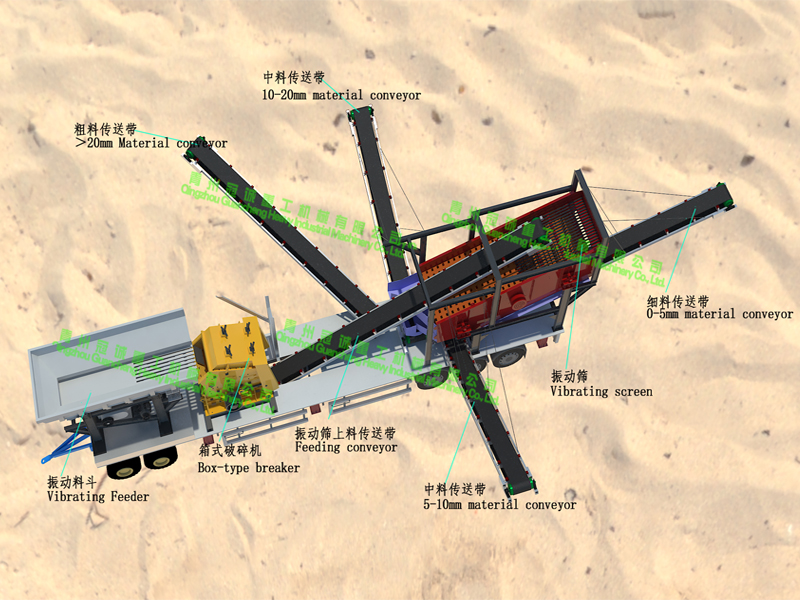

Raw material into shaking feeder then well distributed into hammer crusher to be crushed,then classified by vibrating screen into 4size:the big size＞20mm,the medium10-20mm,the small 5-10mm,the smallest＜5mm

The one＞20mm from transport conveyor to destination;

The one in size10-20mm transported by conveyor to destination;

The one in size 5-10mm transported to destination;

The one in size of 0-5mm transported to destination.

Mobile crusher equipment,sandprocessing machinery detail parameter

Production	Specification	Quantity	Power	Unit price	Total price	Remark
Driving system	□ Trailer engine □Additional driving and directions system	1pcs
Base plate	Made from 17.5m semi trailer	1pcs	-			Can be with mechanical or hydraulic legs
Shaking feeder	4200*1100	1pcs	15
Vibrating screen	6000*2100 2floor vibrating screen 1st with 25#round steel 2nd with polyurethane screen mesh 3rd with polyurethane screen mesh	1pcs	30
Transport conveyor	Belt width800mm,pole length 13m	1pcs	11			Feeding to vibrating screen
Transport conveyor	Pole width 600mm,pole length 9m	1pcs	5.5			＞20mm material transport conveyor
Transport conveyor	Pole width 600mm,pole length 10m	1pcs	5.5			10-20mm transport conveyor
Transport conveyor	Pole width 600mm,pole length 10m	1pcs	5.5			5-10mm transport conveyor
Transport conveyor	Pole width 600mm,pole length10m	1pcs	5.5			＜5mm transport conveyor
Box-type breaker	1000*1200	1pcs	110
Water pump		1set	7.5
Electric box	Switch Brand:Delixi	1pcs	-			Excluding the cable
Total power	195.5KW
