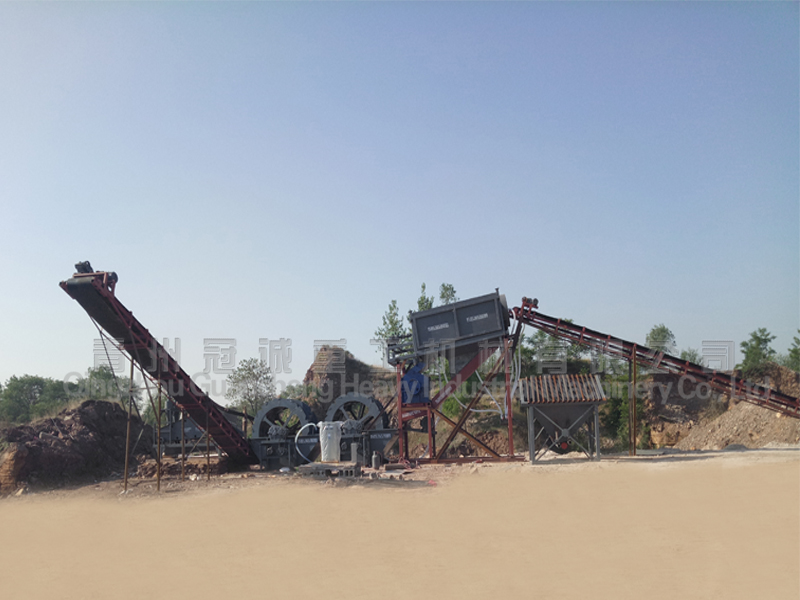

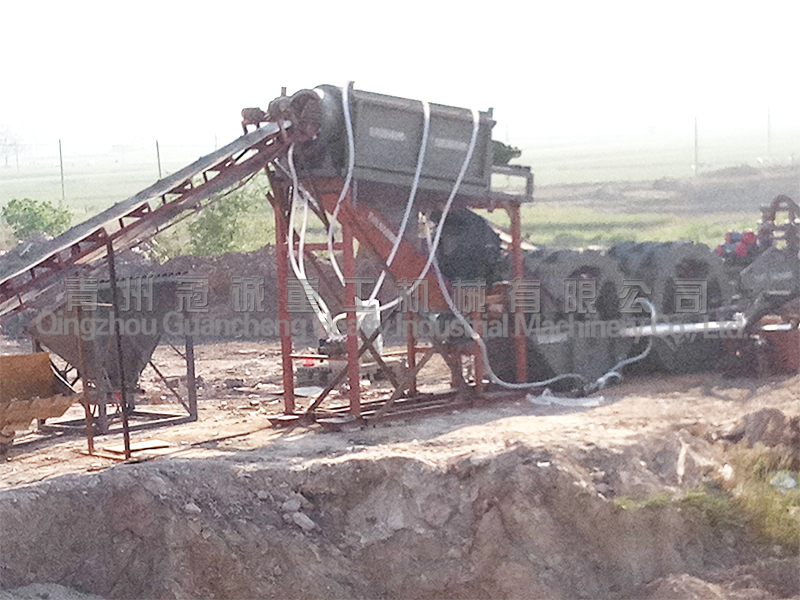

100-120tph Sand processing machinery Plant

Technical process

Raw material get into feed hopper then into transport conveyor well distributed with work of vibration feeder,then into trommel screen to be classified into 2 size:the big(coarse) material and fine size material:

The big size one into one set of sand making machine(Impact type)to be crushing the crushed material with fine size material together into 2set of wheel bucket type sand washer for the 2nd time washing,then final production get and transported to destination by conveyor;

The fine sand discharged with scrap water into mineral box through the pipe by wheel bucket sand washer,then to be feed into fine sand recover machine by sand pump,the final production clean sand get and transported to destination by transport conveyor.
Detail parameter

Production Name	Specification	Quantity	Power	Unit price	Total price	Remark
Feed hopper	3000*2200	1set	0.37
Transport conveyor	Belt width 800m,length about 15m	1pcs	11
Trommel screen	Inner diameter 1.3m,outer diameter 1.6m,screen mesh 3m	1pcs	11
Wheel bucket sand washer	Ø2800*1800	2set	7.5*2
Fine sand recover machine	15002750 ; 2.2KW2 Doublet hydrocyclone 6inch sand pump+22motor+mineral box	1set	26.4
Final production transport conveyor	Belt width 800m,pole length about 15m	1pcs	11
Impact sand making machine	800*1200	1set	110
Water pump		1pcs	7.5
Electric box	Including the electric wire excluding the cable	1pcs	-
Total power	184.77KW
