200-300tph alluvial gold mining equipment

gold mining equipment

Raw material capactiy 200-300tph gold mining machine mining machinery

Material size below 6mm capacity:80-100tph

Recovery over 90% to visible and single crystal gold

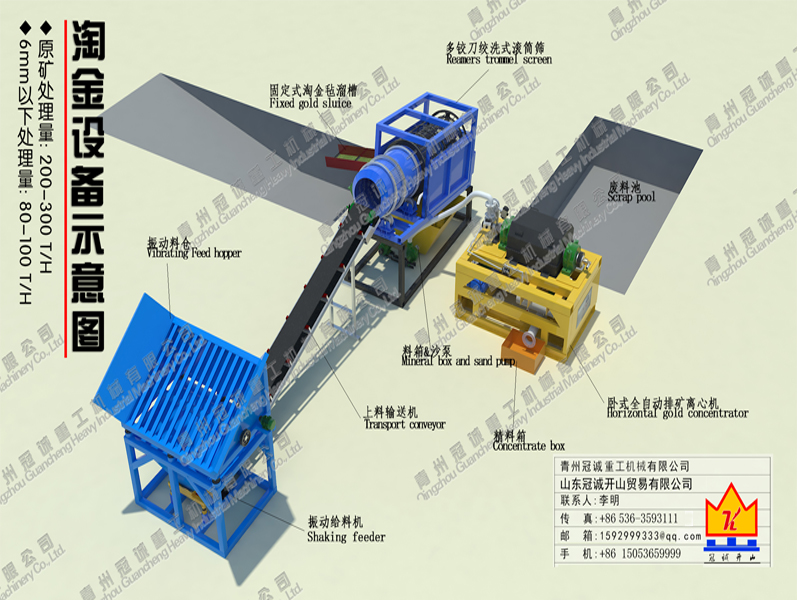

Technical process
Raw material from excavator into vibrating feed hopper then well-distributed transported by conveyor to reamers trommel screen to be classified into big size＞6mm and small size≤6mm,the one in size ＞6mm into fixed sluice to get the gold,the scrap into scrap material;
The small getting into 1set 1200#horizontal gold concentrator from 1set 4inch sand pump,the concentrate into concentrate box,the scrap into scrap pool.
Detail parameter

Production	Specification	Qantity	Power	Unit price	Total price	Remark
Vibrating feed hopper	2200*3000	1pcs	0.38			Including shaking feeder
Transport conveyor	Belt width600mm,pole length about 9m	1set	5.5
Reamer trommel screen	Inner dia.:1.3m,outer dia.:1.6m, Screen mesh 3m,including reamers,driven by chain	1set	7.5
Fixed sluice with carpet	1000*4000	1pcs	-			Including gold carpet,brand Mitsubishi
Mineral box and sand pump	4inch sand pump	1set	11
Gold concentrator	Horizontal automatic discharge	1set	21.5			Plc control automatic discharge
Centrifugal pump	5.5KW	1set	5.5
Submerged pump	5.5KW	1set	5.5
Electric box		1pcs	-
Total power	56.88KW
