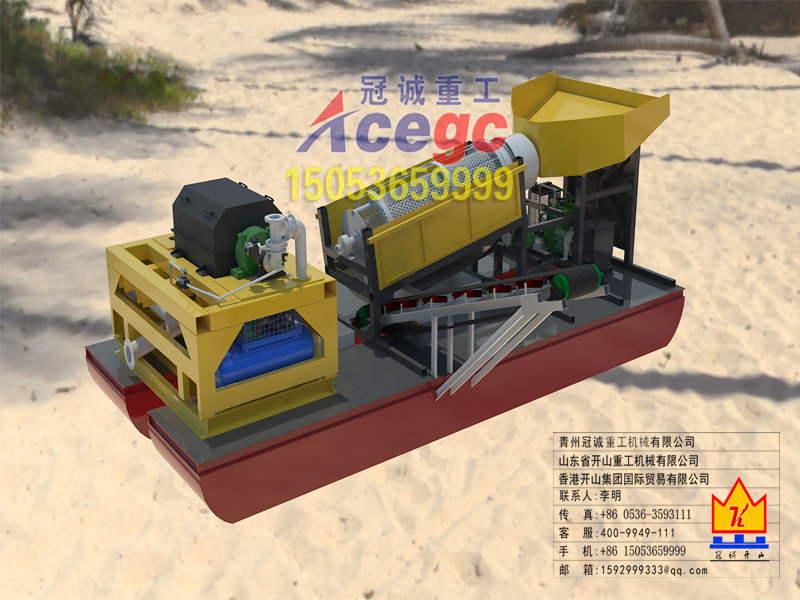

80-100ton/hour river gold mining machine

river gold dredger

Gold mining machine introduction

This type of river gold mining equipment,well used in river bank for gold mining,the feeding type can be excavator,the work capacity of material≤6mm is 80-100ton/hour；With our newly designed PLC control automatic discharge 1200#horizontal gold concentrator can solve the cann’t use of traditional knelson centrifugal concentrator as the balance without laying foundation，work well with the structure improved of trommel screen,can classify and wash the material(especially with clay) highly efficient.

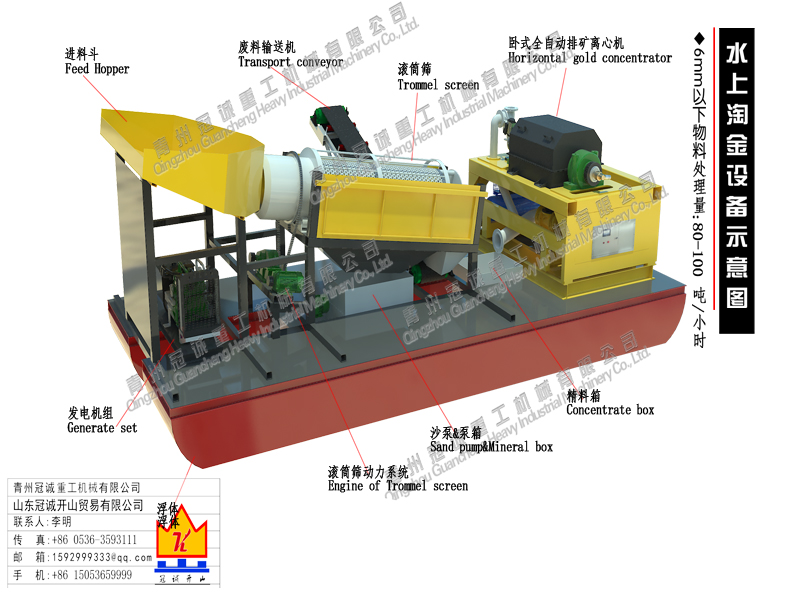

Gold mining machine technical process
The raw material into feed hopper from excavator or loader,then get into trommel screen after swilling of high pressure water classified into 2 size,≥6mm ≤6mm
The material ≥6mm is waste material directly get rid and transported to scrap area；
The material ≥6mm into1200#horizontal gold concentrator sending by 1set sand 4inch sand pump,the finally concentrate get and waste material getting rid into scrap area.

Gold mining machine detail parameter

Production	Specification	Quantity	Power/KW	Remark
Pontoon	LOA 11.8m,single width 2m,height 0.97m,including 2 sigle pontoon.	1pcs	-
Feed hopper	3500*3600mm steel thinkness 10mm	1pcs	-
Trommel screen	Inner dia.:1m,outer dia.:1.3,screen mesh 3m,reamers trommel 1m With reamers all over the trommel Driving with 28A double chain Central+2sides water swilling system	1set	7.5
Centrifugal concentrator	Horizontal gold concentrator Plc control automatic type	1set	21.5
Transport conveyor	Belt width 600mm,pole length 6m	1pcs	5.5
Anchor		2pcs	3*2
Sand pump and mineral box	4 inch sand pump+15kw motor+mineral box	1set	15
Centrifugal pump		1pcs	5.5
Total power	55KW
