Mobile Stone Washing Machine

stone washing mahchine

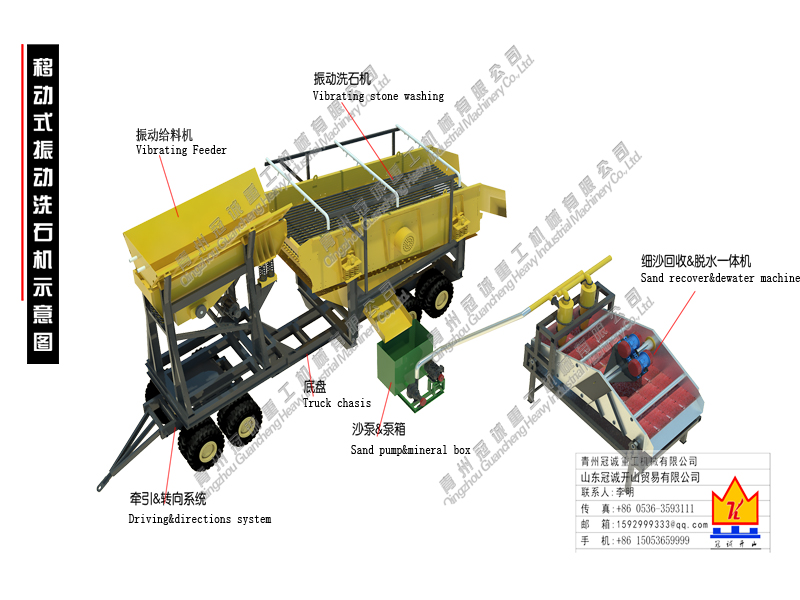

Technical process

Raw material into vibrating feeder ,then swilling by high pressure water into vibrating screen and classified into 3 size,small medium and big size,the big size transported to destination;

the medium size material transported to destination;the small size material into mineral box pumping into fine sand recover and dewater machine,then fine sand transported to destination.

Detail parameter

Production	Specification	Quantity	Power	Unit price	Total price	Remark
Mobile vibrating stone washing machine	vibrating feeder：3896 vibrating stone washing Base plate：trailer chasis 4 axles 16 wheels swilling pipe and water segregator 1set	1set	30
Fine sand recover and dewater machine	Specification：20003850 Hydroclone：350# 2pcs vibrating motor：3.2KW2 6inch mineral box+30kw motor+mineral box	1set	36.4
Transport conveyor	belt width 600	1pcs	7.5
water pump	7.5KW	1pcs	7.5
Electric box		1pcss	-
Total power	81.4KW
