150-200m3/hour gold dreging boat for sale

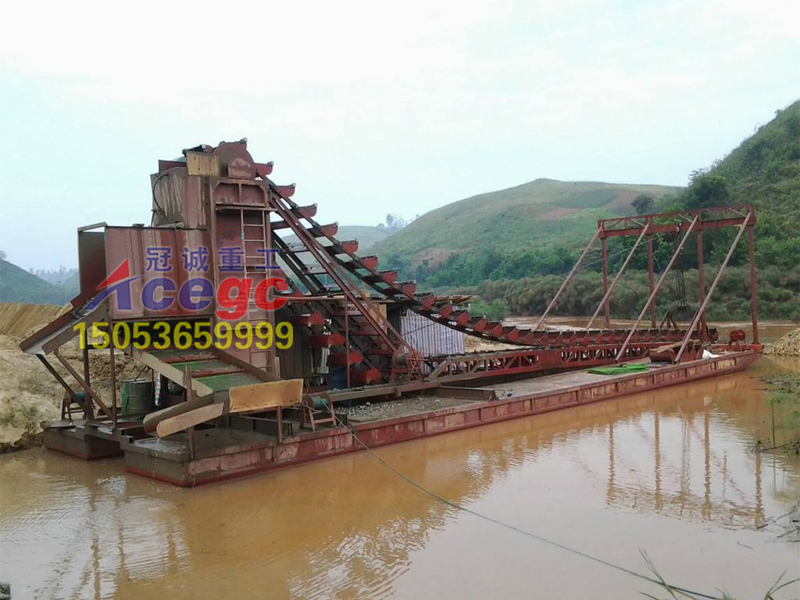

gold dredger

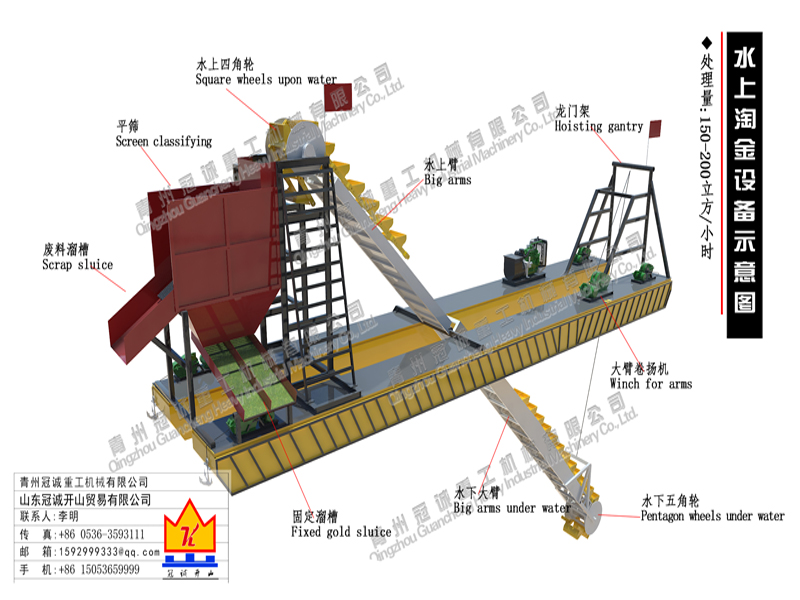

Gold mining machine dredger technical process

The raw material into bucket of bucket chain gold dreget then screen classiffying into 2size,the big size into scrap sluice and the small size material into fixed gold sluice to get concentrate,the scrap discharged.

Gold mining machine dredger detail parameter

Production Name		Specification	Power	Quantity	Unit price	Total price	Remark
Pontoon		LOA26m,single width1.8m,height 1.15m,deck board with checkered plate thickness 4mm,6mm side board and base board	-	1set
Hoisting gantry			-	1pcs
Bucket	Bucket	Model100	55	1set			Chain:106pcs 73kg/pcs Bucket:53 pcs 140kg/pcs
	Chain	Material cast steel
	Big arm	Length 25.4m,including2 parts
	Pentagon wheel under water
	Square wheels upon water
	Holding frame	Materil 20#H steel
	Engine	Reducer:Model1000# Motor:55KW
Screen classifying	Screen classifying	4000*1500mm	2.2KW*2	1set
	The hopper	With 8mm steel
	Holding frame
Scrap sluice			-	1pcs
Winch of big arms			15	1set
Main anchor			5.5	1set
Anchor			3KW*4	4pcs
Water pump			7.5	1set
Control box			-	1set
Fixed gold sluice			-	2pcs
Generate set		120KW		1set
