Vibrating feeder+trommel+fixed gold sluice mobile gold ming machine

Brief Introduction-Gold mining machine mining machinery

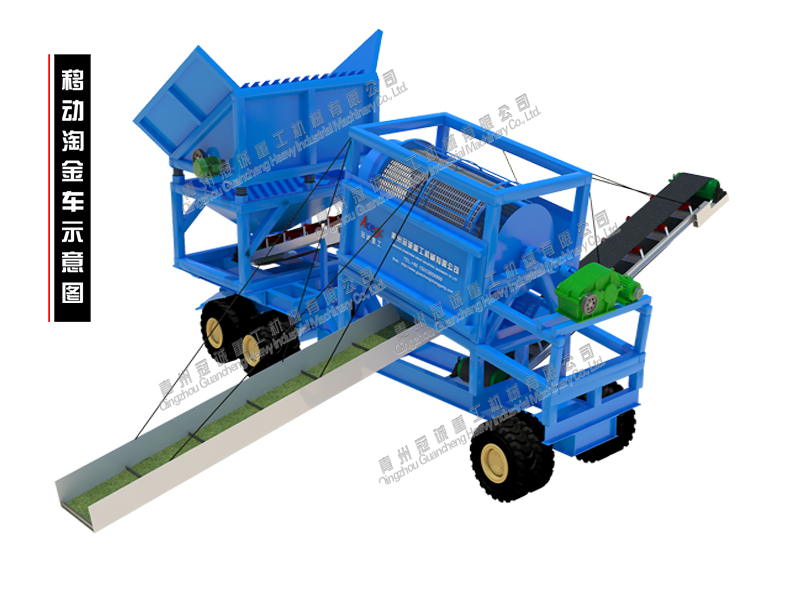

This set of mobile trommel gold separating plant with vibrating feeder is based on our years' experience of mine machinery manufacturing, and constantly consummates the feedback information of users. It has the following advantages according to the traditional gold-dressing equipment:
1. All of them adopt the automobile chassis design, which is not affected by the terrain, and has a wider range of application, which can turn 180 degrees. It overcomes the shortcomings of the traditional sledge-type equipment, such as the inconvenient movement, the inconvenient steering and the strict requirements for the terrain.
2. The vibrating silo drum sieve is used for mineral screening and grading, which can effectively reduce the wear of the roller screen and improve the screening efficiency.
3, large amount of work capacity and high recovery rate.
4, the equipment integration degree is high, after many years production practice, the breakdown rate is low, the maintenance is simple, convenient.
Technical process-Gold mining machine mining machinery
The raw material into vibrating feeder by excavator,then size≥ 80mm to be screened and get rid, which can reduce wear of machine in classifying process of trommel screen. The material less than 80mm is getting into trommel screen by the conveyor then classified into 2size,the big size and the small size.The big one(useless material) transported by conveyor to scrap area,the small one get into one fixed gold sluice to get the concentrate.

Detail parameter-Gold mining machine mining machinery
