Gold mining machine:river dredger+mobile gold trommel plant

Brief introduction-Gold mining machine
This set of gravity separating plant is mobile horizontal concentrator work plant,≤6mm material work capacity 100ton/hour,is newly design and update with customer’s actual inquiry and the experience with gold separating,it can be moved and operating very easily with low failure and easy maintance etc. This plant is for materials such as gold,tin,lead zinc ore etc.
The main advantage:

Easily moved and the worksite change
With feeding type of sand pump+input speed reducing box,if work with other mining plant,no need of seeking drop in vertical level and laying foundation
Can work well with other mining machines,such as vibrating sluice,pulsating sluice,gold dredger etc to high recovery
The feeding type can be changed easily to be hopper,the installation need very little human work.
The horizontal gold concentrator can be worked very well on truck chasis and steady,automatic controlled by PLC with more efficient
This plant with two feeding systems which can be replaced simply and conveniently: (1) feeding type of sand pump and input speed reducing box; (2) feeding type of feed hopper; can be used excavator or loader to feed. This plant can work alone or with other mining plants and especially worksite that often need to be moved

Detail parameter-Gold mining machine

Production Name	Specification	Power /KW	Quantity	Unit price	Total price	Remark

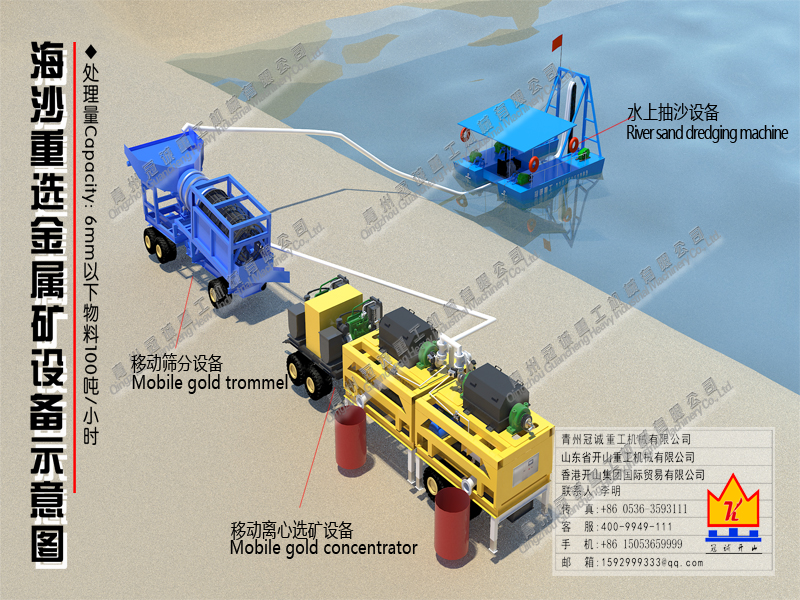

Mobile gold trommel	Feed hopper 1set Reamer trommel diameter 1.3m,length 2.2 including reamer all over the trommel Gold trommel inner diameter 1.3m outer diameter 1.6m,screen mesh 3m Engine：7.5KW motor Truck chasis 4axles 16tyre,including driving&directions system Sand Pump 6inch+30KW motor Water pump7.5KW submerged pump 1set Electric box1set	45	1set
Mobile gold concentrator	Truck chasis Heavy truck chasis,4axles 16tyre,including driving&directions system hydraulic system Hydraulic station 5.5kw Centrifugal concentrator1200#automatic discharge 2set，21.5KW/set Centrifugal water pump:11KW 1set Electric box：1set	59.5	1set
River sand dredging machine	Yuchai YC6B135Z-D20 + 6inch sand pump、28Hp diesel engine、4inch water pump、Pontoon length8m、width6m	-	1set
The pipe	Pipes for 6inch sand pump	-	150m
The joint	6inch	-	30pcs
The clamp for pipe	6inch	-	60pcs
The pipe	Pipes for 4nch sand pump	-	20m
The joint	4inch	-	4pcs
The clamp for pipe	4inch	-	8pcs
The pump for main water resource	Centrifugal pump	18.5	1set
Total power	about 110KW
