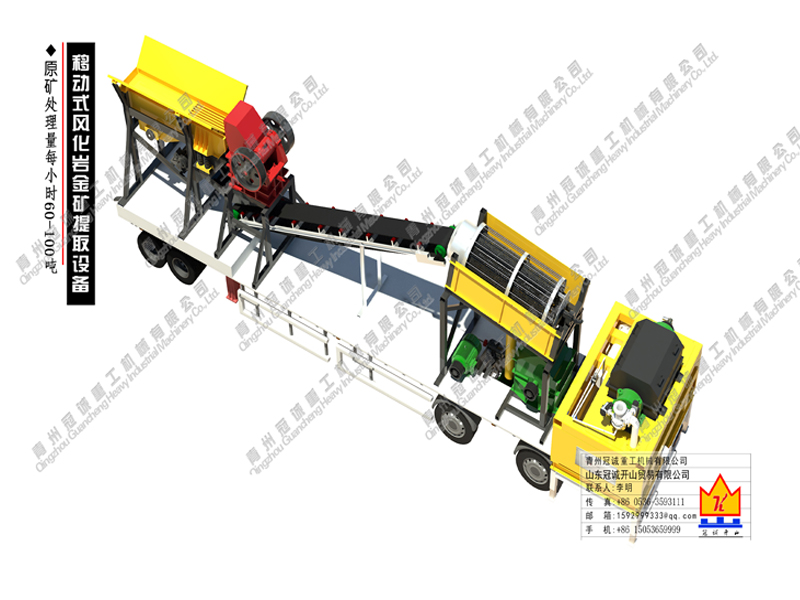

Work capacity 60-100tph weathered rock sand gold mining machine

gold mining equipment

Mining mahcinery Goldmining machine Technical process
Raw material into vibrating feeder，the coarse mineral in big size into 1set jaw crusher to be crushing,the crushed mineral with the small size of coarse mineral to be transporting into central water supplying trommel screen to be classified into 2size,the big one and small one.The big one into rock mine specialized sand making machine to be crushing,then to be feeding into the horizontal automatic discharge concentrator with the classified small one mineral,finally the gold concentrate get and tailing ore discharged to destination pool.
Mining mahcinery Gold mining machine Detail parameter

Production	Specification	Quantity	Power	Remark
Base plate	17.5m truck chasis	1pcs	-
Directions and driving system	2axles 4 wheels	1set	-
Vibrating feeder	3800*750	1pcs	15
Jaw crusher	PE400*600	1set	30
Trommel screen	Inner diameter:1m,outer diameter 1.3m,screen mesh 2.5m central and sides water supplying Including reamers all over the trommel screen With double chain driving system	1set	5.5
Rock mine specialized sand making machine	800*1000	1set	90
Centrifugal concentrator	Automatic discharge concentrator PLC control	1set	21.5
Sand pump&mineral box	4inch sand pump+30KW motor+sand pump	1set	30
Centrifugal pump		1pcs	7.5
Electric box	Including the electric wire to machie,excluding the cable	1pcs	-
Total power	199.5KW
