Work capacity 50m3/h samll river gold mining machine

Gold mining machine, mining machinery introduction

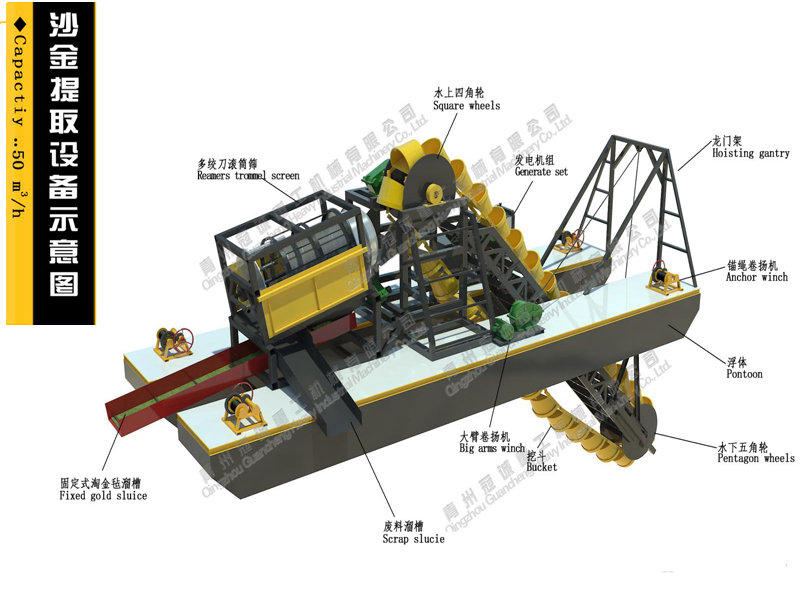

This gold gold mining machine bucket chain dredger is customized design,the trommel screen and dredger advantage as below:

1. The driving system with bucket chain drive,with high efficient and lower electric

2. The trommel screen with reamers is suitable for types of mining minerals especially clay ore.

3. The water system with central washing and side swilling type,central washing the big size material and side swilling to wash the screen mesh to prevent plugging.

Gold mining machine, mining machinery technical process

The raw material getting into trommel screen  to be classified  into  2size:the big one and normal one,the big useless to be directly send to scrap area;the small one to be recoverd by on fixed shaking sluice with gold carpet,the gold are kept in by the gold carpet.
