200-300tph alluvial gold mining machine

gold mining machine

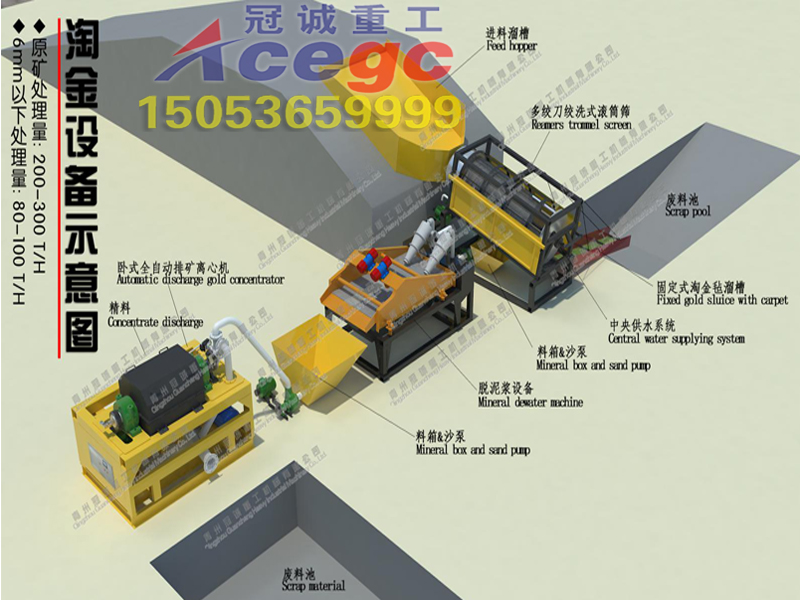

Gold mining machinetechnical process
The raw material into feed hopper by excavator,then high pressure water swilling into reamers trommel screen to be classified into 2size,the big one ans small one,the one in big size into one fixed gold sluice with carpet,the scrap get rid into the scrap pool;
The material in small size into mineral dewater machine by sand pump ,then into mineral box sending to 1200#automatic discharge gold concentrator to be separating finally the concentrate get from concentrate discharge pipe and scrap to get rid into scrap pool.
Gold mining machine detailParameter

Production	Specification	Quantity	Power	Remark
Feed hopper	3500*5500 10mm thick steel	1set	-
Trommel screen	Reamers trommel screen inner dia.:1.3m（punch manufacturing）outer dia:1.6m,screen mesh 3m,including reamers all over the trommel,2 pcs chain driving, central+sides water supplying	1set	7.5	including the hopper,holding frames
Mineral deslining machine	2000*3800	1set	4.4	Polyurethane mesh
Gold concentrator	1200#automatic discharge concentrator	1set	21.5	PLC control
Mineral box and sand pump	4inch sand pump 11KW	2pcs	22
Centrifugal pump		1pcs	5.5
Submerged pump	5.5KW	2pcs	11
Electric box		1pcs	-
Total power	71.9KW
