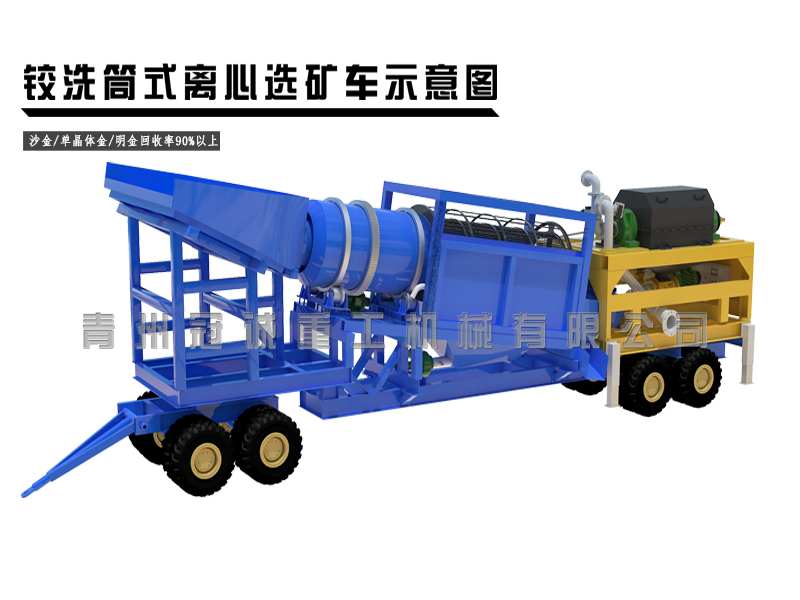

100-150ton/hour mobile gold trommel serparating car

Work capactiy:100-150ton/hour

This movable trommel screen gold mining machine is designed&manufactured by ourselves,improving our technology by service after sales and advice of customers etc,now it’s advanced and well-rounded technology in china.This type of machine can be feed by excavator or wheel loader,which is widely used in gravel sand mine,tailings of rock gold mine etc.

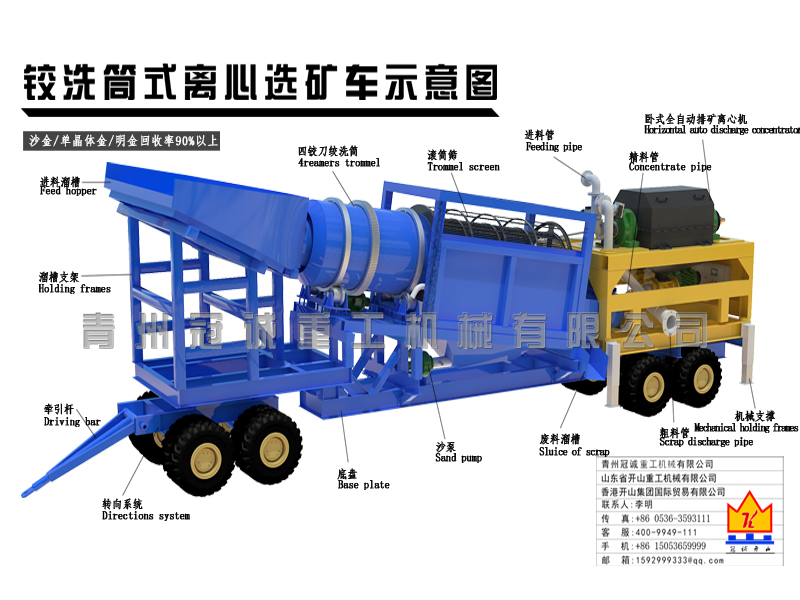

Gold mining machine features

It can be easily feed by excavators or other types

It can be easily moved&circled in 180 degree

The base plate use heavy trailer type,4axles and 16 tyre with mechanical holding frames with good performance of steady and reliable work.

The inner of reamer trommel screen including 4 reamers so it can be worked in high efficiency and make minerals more clean.

Water supplying system: washing on top of hopper the then pushing the mixture to flow to the screen,washing in middle of screen which is the most principal,washing in screen outside it can clean the material carefully and avoid the gambling plug.

The movable gold reamer trommel separating car with 1set horizontal auto discharge concentrator,feeding type is by 1set 4 inch sand pump,with 4 mechanical holding frames,working in reliable and steady surroundings.(the horizontal concentrator is with spindle 2side fixed,it can a very good performance in jolting surroundings instead of vertical type which can only be used on ground level)

It works well with other machines such as shaking sluice/pulsating slucie,centrifuge concentrator etc.

Gold mining machine detail parameter
