Dredging depth15-18m capacity 100-150ton/hour gold&diamond mining machine

river gold mining machine

Brief introduction-Gold mining machine,Dredger

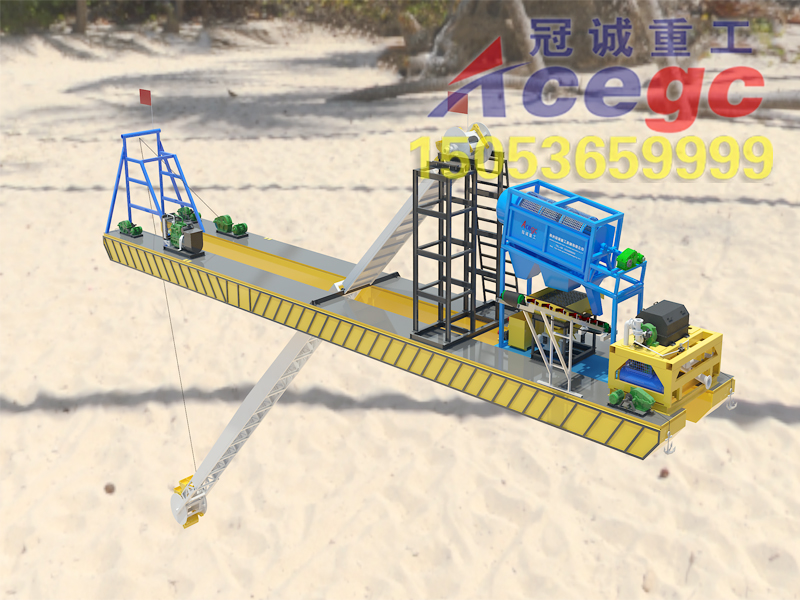

This set of dredging depth15-18m capacity 100-150ton/hour gold&diamond mining dredger machine is customized for customer.
High recovery with the gold particle(including invisible gold),this machine with high technology,new design and low maintenance.The PLC control automatic discharge gold concentrator is our main production,it can work in high recovery and reduce human work.

	Horizontal gold concentrator	Vertical gold concentrator
The system	PLC conctrol	Handling control
Discharging	Automatic discharge	Handling discharge
The shaft	Horizontal(shaft 2sides fixed)	Vertical(buttom sidefixting)
Working	Long(working life)	Normal(working life)
The installation	No need seeking ground level	Need seeking ground level
Feeding	Sand pump(easily control the feeding concentration 30%)	By gravity feeding(cann’t control the feeding concentration)
Recovery	Above 90%	70%
Application field	Good peformance in jolting surrounding such as mobile gold separating car,gold dredger etc	Cann’t work in jolting surroundings.
Biggest capacity model	1200# or bigger capacity need customized	80#

Detail Parameter-Gold mining machine,Dredger

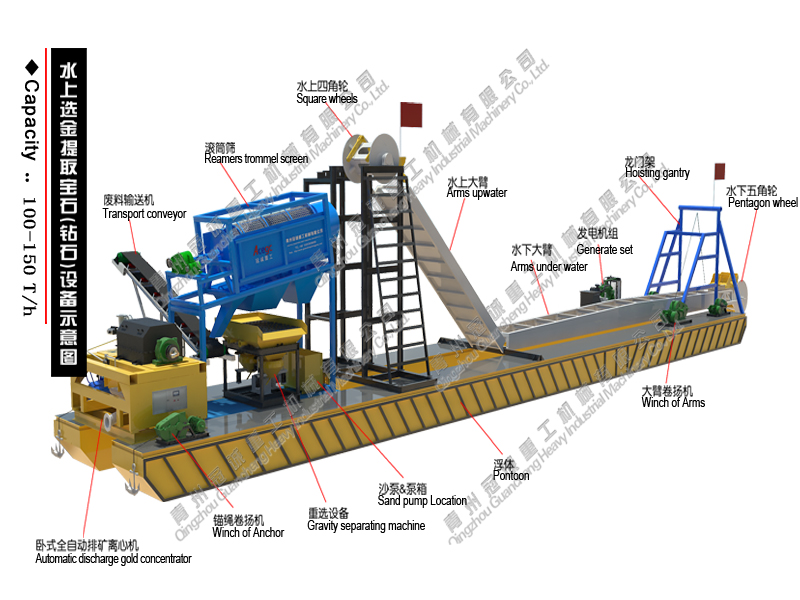

Production Name		Specification	Power	Quantity	Unit price	Total price	Remark
Pontoon		LOA(length):35.6m,single width:1.8mHeight:1.02m	-	1set
Hoisting gantry			-	1pcs
Bucket system	Bucket	Model70#	37	1set			Chain:164pcs,about 40KG/pcs,single thickness 3CM,total thickness 9CM Bucket:82pcs,about 95KG/pcs
	Chain	Material:Cast steel
	Big Arms	Total length 29.5m,2section
	Pentagon wheel
	Square wheeel
	Holding frames	Material:20#H steel
	The engine	Reducer:850# Motor：37KW
Reamertrommel screen	Trommel screen	Inner diameter 1.3m,outer diameter 1.6m,screen mesh 3m	11	1set
	Feed hopper	With 8mm thickness steel
	Holding frames	15#square pipes
Transport conveyor			5.5	1pcs
Winch of Arms			15	1pcs
Main Anchor			5.5	1pcs
Sheet Anchor			3KW*4	4pcs
Water Pump			7.5*2	2set
The Gravity separating machine			7.5	1set
Gold concentrator		80#Horizontal automatic discharge	10.5	1set			PLC control
Centrifugal pump			5.5	1set
Sand pump and location box		Feeding for gold concentrator,4inch	11	1set
Totowal power		About 140KW
